Wrong column order in table grid - missing sort

Robbie DatabeeMay 28 2024

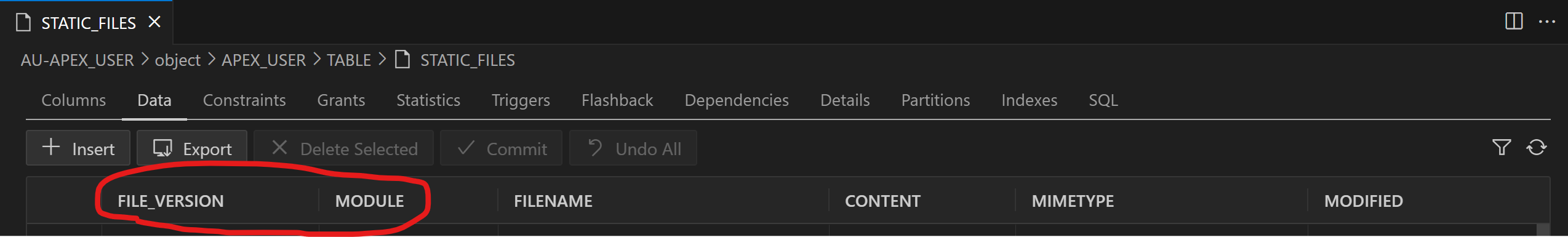

SQL Developer for VS Code sometimes shows the columns of a table in the data grid in the wrong order:

file_version should be the last column (column_id = 6) but is displayed as first column.

I can't provide a testcase, that always reproduces, but I found the cause in the trace file:

The queries that populate the Columns-Grid are using “order by column_id”:

{
    "env": {
        "defaultTimeZone": "Z"
    },
    "items": [
        {
            "statementId": 1,
            "statementType": "query",
            "statementPos": {
                "startLine": 0,
                "endLine": 5
            },
            "statementText": "SELECT COLUMN_NAME\n      FROM SYS.ALL_TAB_COLUMNS\n      WHERE OWNER = :SCHEMA\n      AND TABLE_NAME = :PARENT_NAME\n      ORDER BY COLUMN_ID",
            "resultSet": {
                "metadata": [
                    {
                        "columnName": "COLUMN_NAME",
                        "columnTypeName": "VARCHAR2",
                        "precision": 128,
                        "scale": 0,
                        "isNullable": 0
                    }
                ],
                "items": [ {"COLUMN_NAME": "MODULE"},
                           {"COLUMN_NAME": "FILENAME"},
                           {"COLUMN_NAME": "CONTENT"},
                           {"COLUMN_NAME": "MIMETYPE"},
                           {"COLUMN_NAME": "MODIFIED"},
                           {"COLUMN_NAME": "FILE_VERSION"}],
                "count": 6
            },
            "response": []
        }
    ]
}

The queries that populate the data grid rely on the order returned by the view sys.all_tab_columns:

{
    "env": {
        "defaultTimeZone": "Z"
    },
    "items": [
        {
            "statementId": 1,
            "statementType": "query",
            "statementPos": {
                "startLine": 1,
                "endLine": 8
            },
            "statementText": "    SELECT\n        column_name, data_type\n    FROM\n        sys.all_tab_columns\n    WHERE\n        owner = :OBJECT_OWNER\n    AND\n        table_name = :OBJECT_NAME",
            "resultSet": {
                "metadata": [
                    {
                        "columnName": "COLUMN_NAME",
                        "columnTypeName": "VARCHAR2",
                        "precision": 128,
                        "scale": 0,
                        "isNullable": 0
                    },
                    {
                        "columnName": "DATA_TYPE",
                        "columnTypeName": "VARCHAR2",
                        "precision": 128,
                        "scale": 0,
                        "isNullable": 1
                    }
                ],
                "items": [ { "COLUMN_NAME": "FILE_VERSION", "DATA_TYPE": "VARCHAR2" },
                           { "COLUMN_NAME": "MODULE", "DATA_TYPE": "VARCHAR2" },
                           { "COLUMN_NAME": "FILENAME","DATA_TYPE": "VARCHAR2" },
                           { "COLUMN_NAME": "CONTENT", "DATA_TYPE": "BLOB" },
                           {
 "COLUMN_NAME": "MIMETYPE", "DATA_TYPE": "VARCHAR2" },
                           {
 "COLUMN_NAME": "MODIFIED", "DATA_TYPE": "DATE" }
                          ],
                "limit": 100,
                "count": 6
            },
            "response": []
        }
    ]
}

I attached the logfile for better traceability.
The data was removed - there are blobs in the table, and the extension still fetches them all before showing the data…

SQLdevVSCode-DataGrid_column_order.txt
