Hi there.
SDDM Ver: 24.3.1

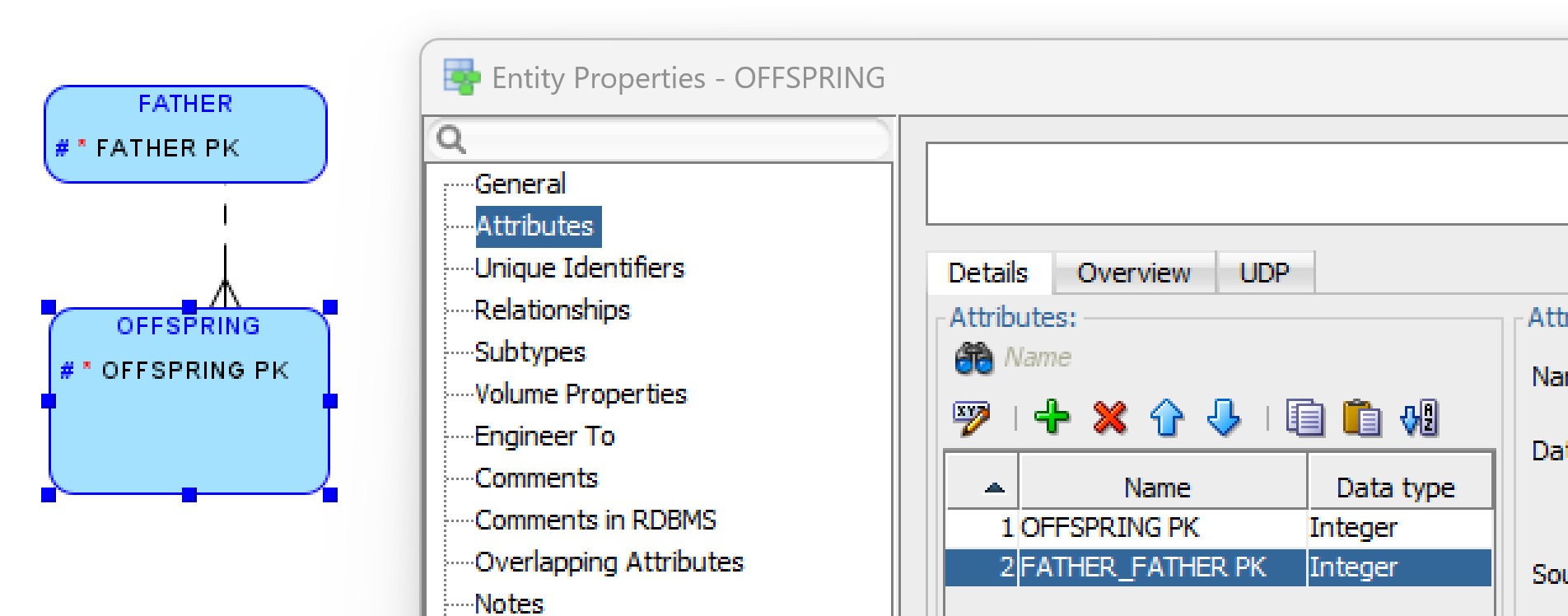

As the title suggests, why can't SDDM display a foreign key that is generated in an entity, as in the following screenshot:

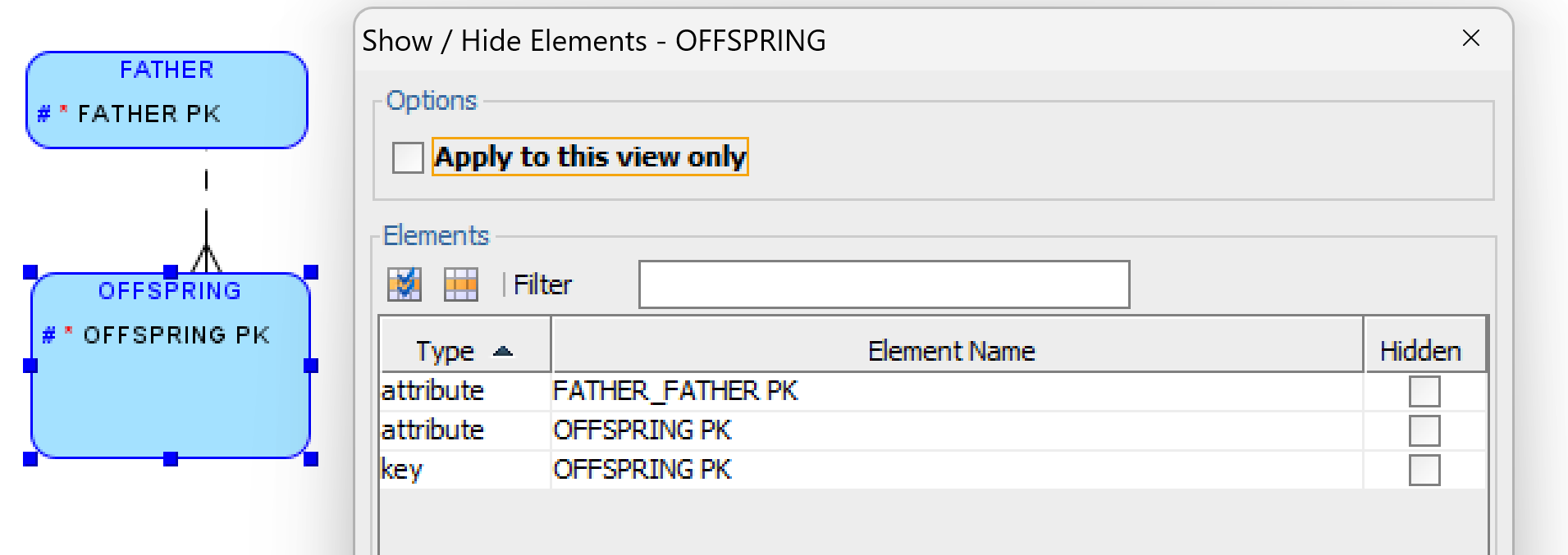

As you can see, attribute FATHER_FATHER PK is in the list of entity OFFSPRING's attributes, but not displayed on the diagram. If you bring the context menu up by righ-clicking on OFFSPRING and selecting “Show/Hide Elements” you will see that FATHER_FATHER PK is listed, and that the checkbox in the “Hidden" column is unchecked.
Checking or unchecking the FATHER_FATHER PK hidden column and then clicking “Apply” will not make FATHER_FATHER PK appear or dis-appear on the diagram, as it does for OFFSPRING PK. All it seems to do is to put a little blue triangle in the top right hand corner of entity OFFSPRING.
So a few questions:
- Is the fact that a generated foreign key not displayed on the Entity Model diagram by design (e.g. keep it de-cluttered), or is it a bug?
- What does the little blue triangle mean?
- Why is OFFSPRING PK listed twice, both as akey and as an attribute?
Thanks.
John.
