Open Dialog Page with HTML Button

Rohit Mittel5 days ago — edited 5 days ago

Hi,

I am trying to open dialog page using an HTML button but getting “No Checksum provided error”. Any help with this would be appreciated. Using Oracle Apex version 24.2.

Below is a sample code of what I am trying to do.

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Open Modal in APEX from Page Items</title>
  <script type="text/javascript">
    // Function to open the modal dialog with page items' values from Page 29
    function openModalDialog() {
      // Get values from the items on Page 29
      var dealId = document.getElementById('P29_DEAL_ID').value;  // P29_DEAL_ID input (Page 29 item)
      var setSeqId = document.getElementById('P29_SET_SEQ_ID').value;  // P29_SET_SEQ_ID input (Page 29 item)

      // Construct the URL for opening the modal dialog on Page 25
      var appId = 100; // Replace with your actual Application ID
      var pageId = 25; // Modal dialog page number (Page 25 in this case)
      var appSession = '&APP_SESSION.'; // Placeholder for the session value

      // URL format: f?p=App_ID:Page_ID:Session:Request:Debug:ClearCache:Items:Values
      var url = `f?p=${appId}:${pageId}:${appSession}:0:1::::P25_DEAL_ID,P25_SET_SEQ_ID:${dealId},${setSeqId}`;

      // Open the modal dialog using APEX's navigation.dialog
      apex.navigation.dialog(url, {
        title: "My Modal Dialog",  // Modal dialog title
        height: 600,  // Set the height of the modal
        width: 800,   // Set the width of the modal
        resizable: true,  // Allow resizing the modal (optional)
        maximizable: true // Allow maximizing the modal (optional)
      });
    }
  </script>
</head>
<body>
  <h2>Sample Page 29 with Button to Open Modal Dialog</h2>

  <!-- Form with fields for P29_DEAL_ID and P29_SET_SEQ_ID -->
  <form>
    <label for="P29_DEAL_ID">P29_DEAL_ID:</label>
    <input type="text" id="P29_DEAL_ID" name="P29_DEAL_ID" value="12345" required><br><br>

    <label for="P29_SET_SEQ_ID">P29_SET_SEQ_ID:</label>
    <input type="text" id="P29_SET_SEQ_ID" name="P29_SET_SEQ_ID" value="67890" required><br><br>

    <!-- Button to trigger the JavaScript function to open the modal dialog -->
    <button type="button" id="openModalBtn" onclick="openModalDialog()">Open Modal Dialog</button>
  </form>

</body>
</html>

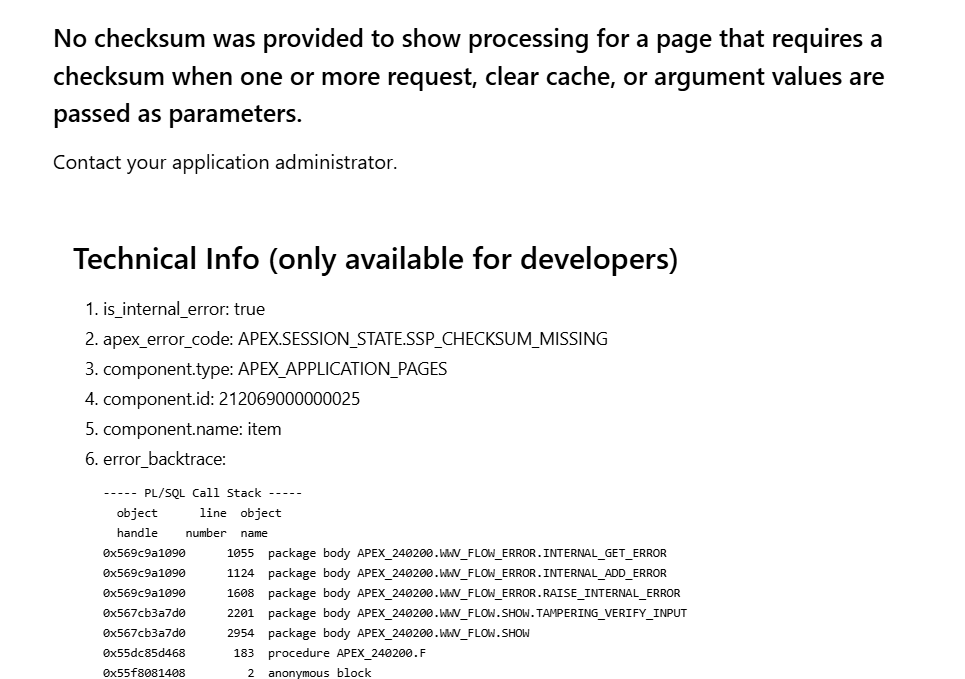

Error Screenshot: -

Thanks,

Rohit
