Hello experts,
I have an issue which needs your guidance. I am using Oracle report builder version Report Builder 12.2.1.3.0. I have a few graphs in one of the reports. But these graphs and report was built quite sometime ago in earlier report builder versions but I don't exactly know which.
Below is the content specified contained in the Graph Settings:
<rw:graph id="CT_2" src="g_t13_publish_date" groups="t13_publish_date" dataValues="ULP,Diesel,Brand_Diesel">
<!--
<?xml version="1.0" ?>
<Graph version="3.2.0.22" lineDataLineDisplayed="true" markerDisplayed="true" markerShapeInLegend="true" graphType="LINE_VERT_ABS">
<LegendArea automaticPlacement="AP_NEVER" position="LAP_BOTTOM"/>
<O1TickLabel textRotation="TR_HORIZ_ROTATE_90" automaticRotation="AR_NO_ROTATE"/>
<SeriesItems defaultMarkerShape="MS_CIRCLE" defaultLineWidth="1"/>
<Title text="Margin Report (Metro only)" visible="true">
<GraphFont name="Arial" size="12" fontColor="#0"/>
</Title>
<Y1Title text="TGP-Retail" visible="true">
<GraphFont name="Arial" size="12"/>
</Y1Title>
</Graph>
-->
</rw:graph>

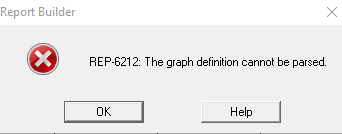

The error occurs when I select the graph object in the Paper Layout and then I right click and select Graph Wizard and it is throwing the following error dialog:

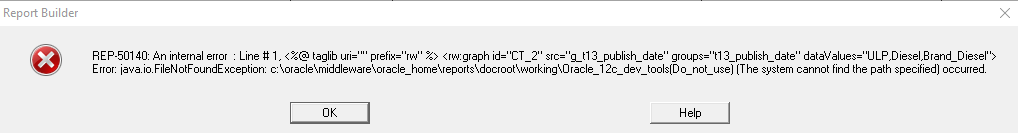

After clicking the OK, I got another error which is displayed below:
After clicking the OK, I got Graph Wizard appears but as I navigate through using the Next button, all existing settings of the original Graph is lost, can I please ask to solve it, thank you for your assistance.
