Hi,
I'm having issues to properly render gauge. I copied default meter gauge and added my own code. I think we tried everything. Is there any way to push the reference line to the value of ‘COVERAGE’. When I set it manually to any value, it renders properly. The threshold takes the ‘COVERAGE’ value properly but the reference line does not.
APEX v21.2.0

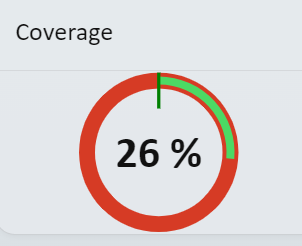

Reference line hard set to = 0.75:
Reference line set to ‘COVERAGE’:

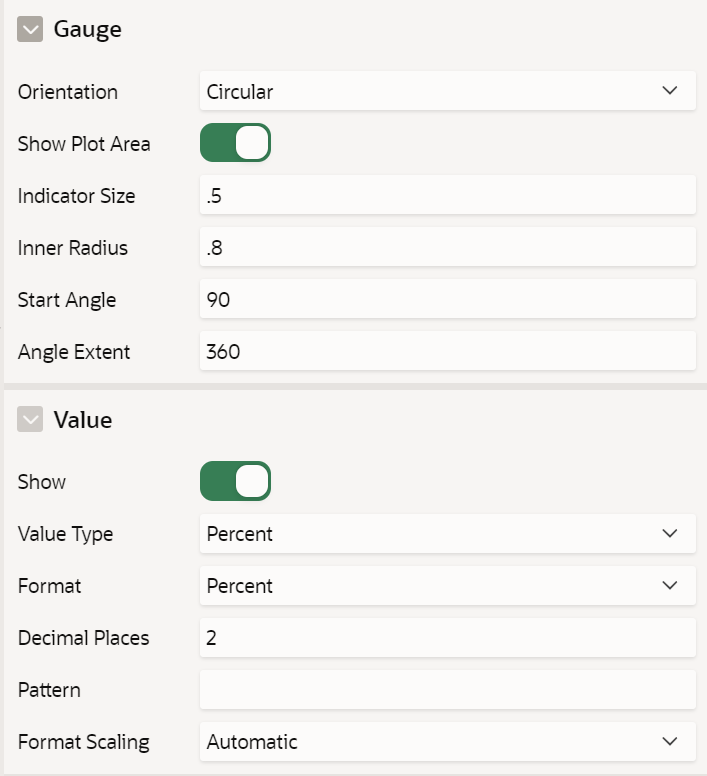

Region Attributes:

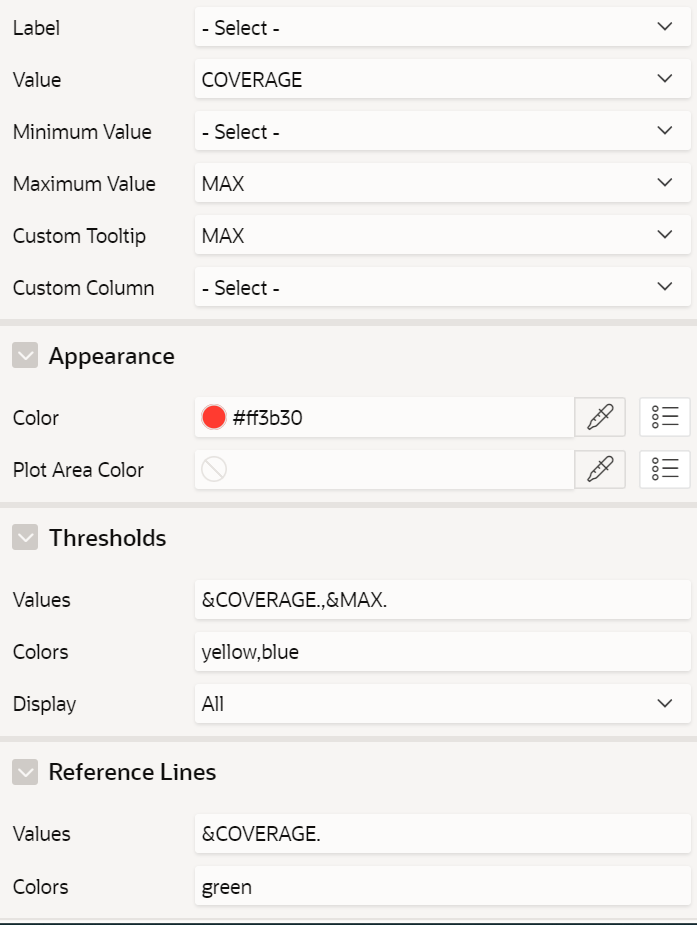

Series settings:
SQL:
select
sum(ECL_KOREKCE)/sum(ON_CZK_BALANCE_BRUTTO) as coverage,
1 as max
from owner.TABLE
where
rdm_bus_date IN (SELECT MAX(column_value) FROM table(apex_string.split(:P276_SELECTED_TOTAL,':')))
and
pl_npl = 'Nevýkonné'
group by rdm_bus_date
