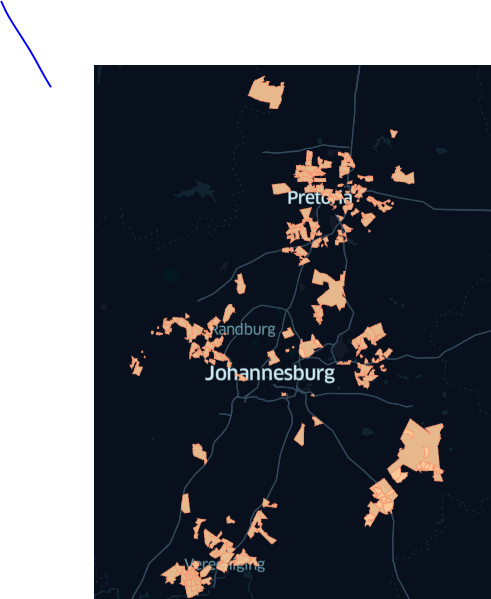

i have loaded json file that cointains coordinates of polygon to apex but some other polygons are missing of which i dont know if maye its the structure of my table or package code that is where i need assistnce this is how they are supposed to be displayed as shown in my vs code then when i load them to apex they display one polygon of which it has to display a number of polygons which represent towns please assist in making my apex map to display polygons the way they are on my vs code
then this is how it is on apex when loaded
there is the table and package code i used CREATE TABLE json_data (
id VARCHAR2(200),
label VARCHAR2(200),
color VARCHAR2(100),
name varchar2(100),
polygon SDO_GEOMETRY
);
create or replace PACKAGE BODY "EBA_DEMO_JSON_DATA_PKG" is
procedure load_json_data(p_json_data clob) is
v_id varchar2(200);
v_label varchar2(200);
v_color varchar2(100);
v_name varchar2(100);
v_polygon sdo_geometry;
v_json_object json_object_t;
v_json_array json_array_t;
v_json_element json_element_t;
begin
v_json_array := json_array_t.parse(p_json_data);
for v_i in 0..v_json_array.get_size - 1 loop
begin
v_json_object := treat(v_json_array.get(v_i) as json_object_t).get_object('data');
v_id := v_json_object.get_string('id');
v_label := v_json_object.get_string('label');
v_name := v_json_object.get_string('name');
v_json_array := v_json_object.get_array('color');
v_color := v_json_array.get_string(0) || ',' || v_json_array.get_string(1) || ',' || v_json_array.get_string(2);
v_json_array := v_json_object.get_array('allData');
v_json_element := treat(v_json_array.get(0) as json_array_t).get(0);
v_json_object := treat(v_json_element as json_object_t).get_object('geometry');
v_polygon := sdo_util.from_json(v_json_object.to_clob);
insert into eba_demo_json_data(id, label,name, color, polygon) values(v_id, v_label, v_name, v_color, v_polygon);
exception
when others then
dbms_output.put_line('error in json data: ' || sqlerrm);
end;
end loop;
end;
end;
i ll attach the json file i loaded
gauteng d.docx
